How Delaware Valley Contractors Helped a Customer Save Thousands on a John Deere Loader Repair
When heavy equipment goes down, every hour of downtime can affect a project’s schedule and bottom line. For contractors and equipment owners, a major component failure can quickly turn into a major repair bill—but replacement isn’t always the only solution.

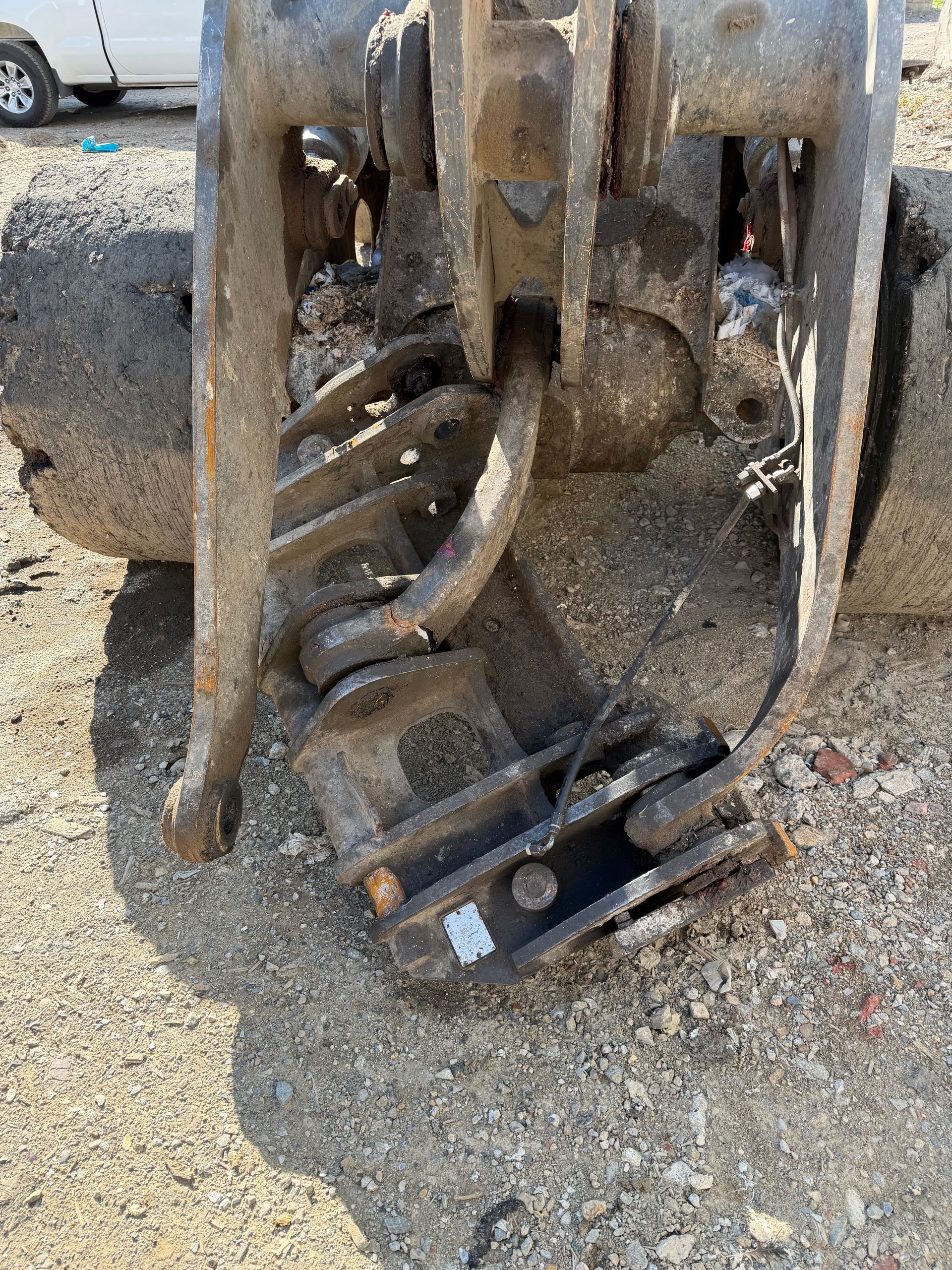

Recently, Delaware Valley Contractors’ (DVC) shop team put that philosophy into action when a customer’s John Deere 544K wheel loader suffered a catastrophic pin failure in the front bucket and lift arm assembly.
The damage was extensive. The front end of the loader was twisted and significantly out of alignment, leaving the machine in need of major repairs. Replacing the damaged components with new or used parts was estimated to cost more than $20,000 before labor.
Rather than automatically replacing the entire assembly, DVC technicians took a closer look at what could be salvaged and repaired.
Precision Repairs That Put Equipment Back to Work
Heavy equipment repair requires more than welding damaged metal back together. Structural components must be properly evaluated, aligned, reinforced, and repaired to help ensure the finished assembly performs as intended.
DVC’s technicians began by carefully assessing the damaged components. Salvageable parts were straightened using a 100-ton press, helping restore the components before additional repair work began.

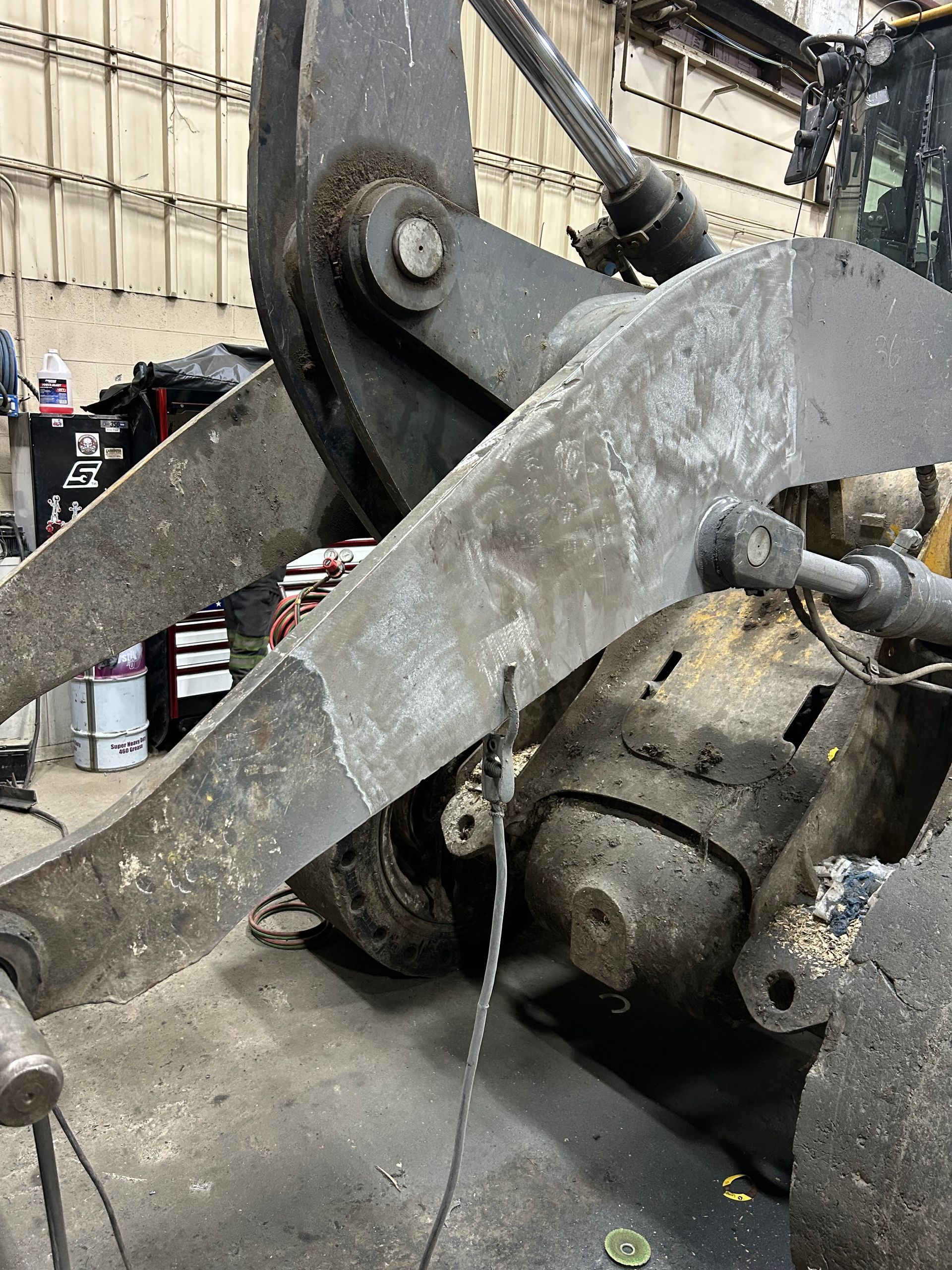

The bent lift arm required a more extensive solution. Technicians precisely cut above the damaged area, and a matching section from another arm was measured, fitted, and aligned using a test bar to ensure both arms remained true and equal in length throughout the repair.
Maintaining proper alignment was critical to completing the repair correctly and preventing additional issues when the loader was reassembled.
Rebuilt for Strength and Accuracy

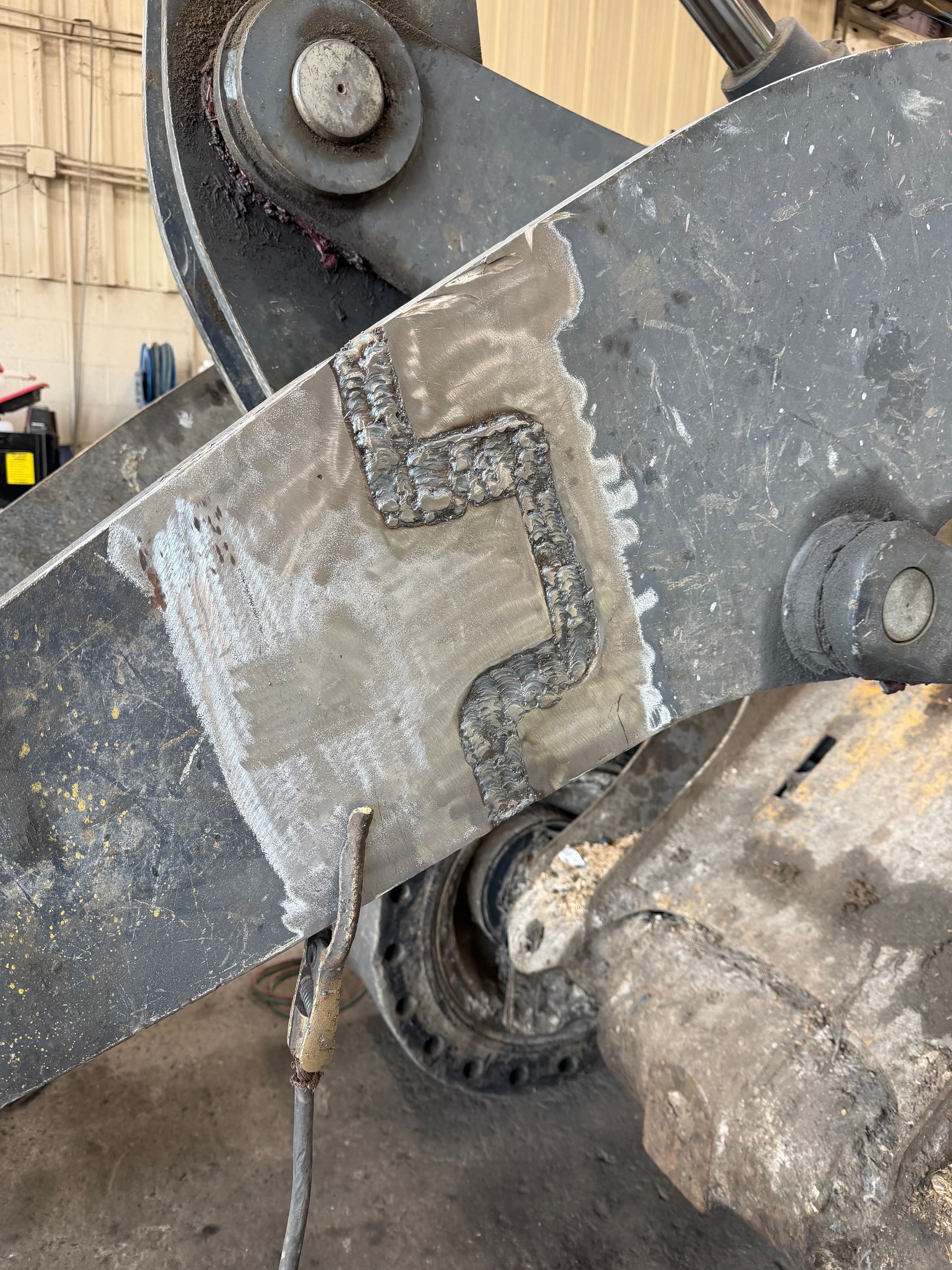

Once the replacement section was properly positioned, DVC technicians prepared the material for welding by creating V-grooves along the repair area. This preparation allowed for a deeper weld and helped create a strong connection between the components.
The lift arm was then welded in multiple passes, with technicians continually checking measurements throughout the process. Careful monitoring helped maintain alignment while minimizing the risk of distortion during welding.

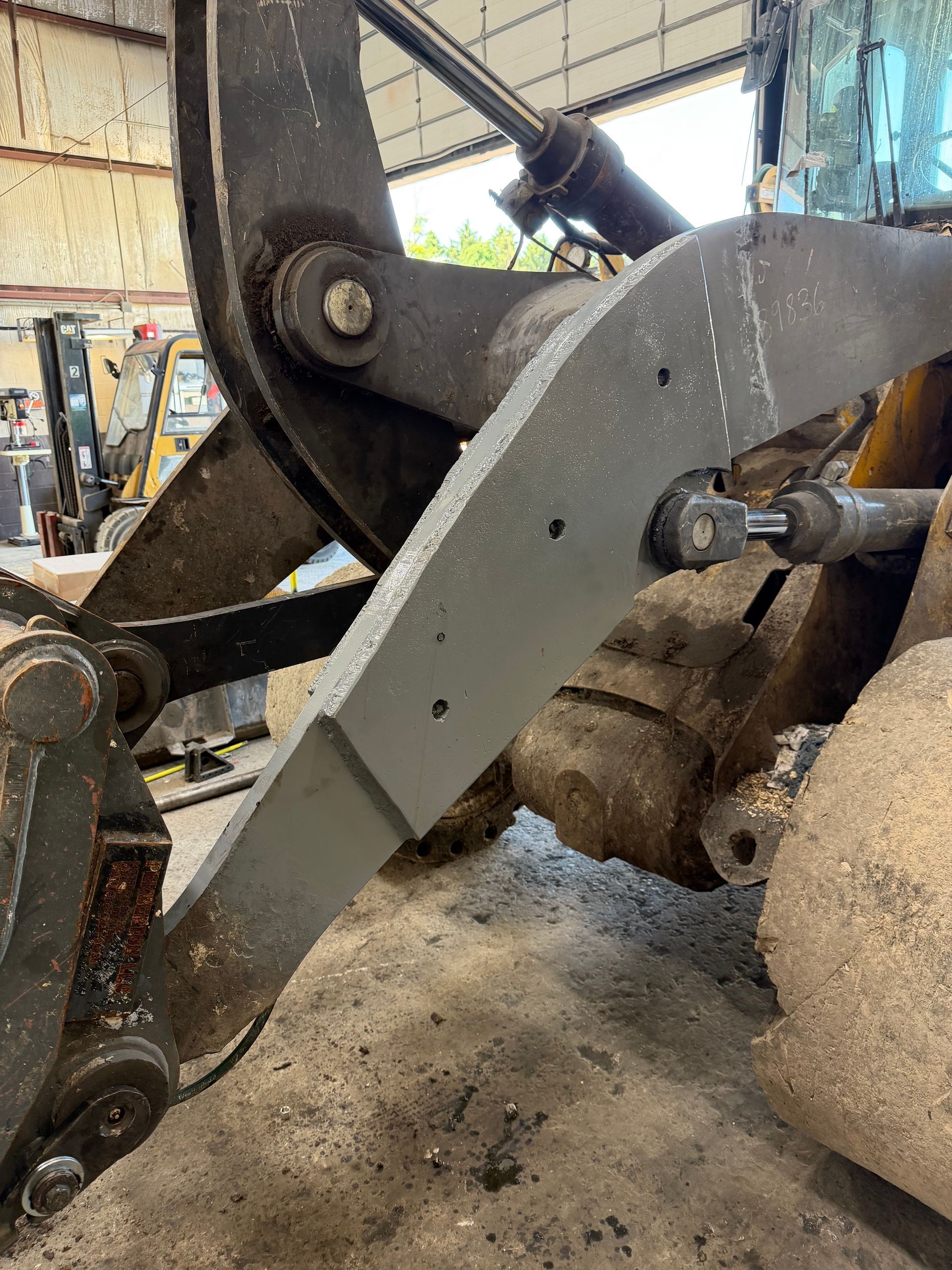

To provide additional reinforcement, the DVC team fabricated custom 1-inch steel reinforcement plates and welded them into place. After the structural repair was completed, the components received a professional finish before the loader was fully reassembled.
This combination of precision fabrication, structural repair, welding expertise, and careful measurement allowed DVC to restore a machine that might otherwise have required a significantly more expensive component replacement.
Saving More Than $15,000—and Valuable Downtime

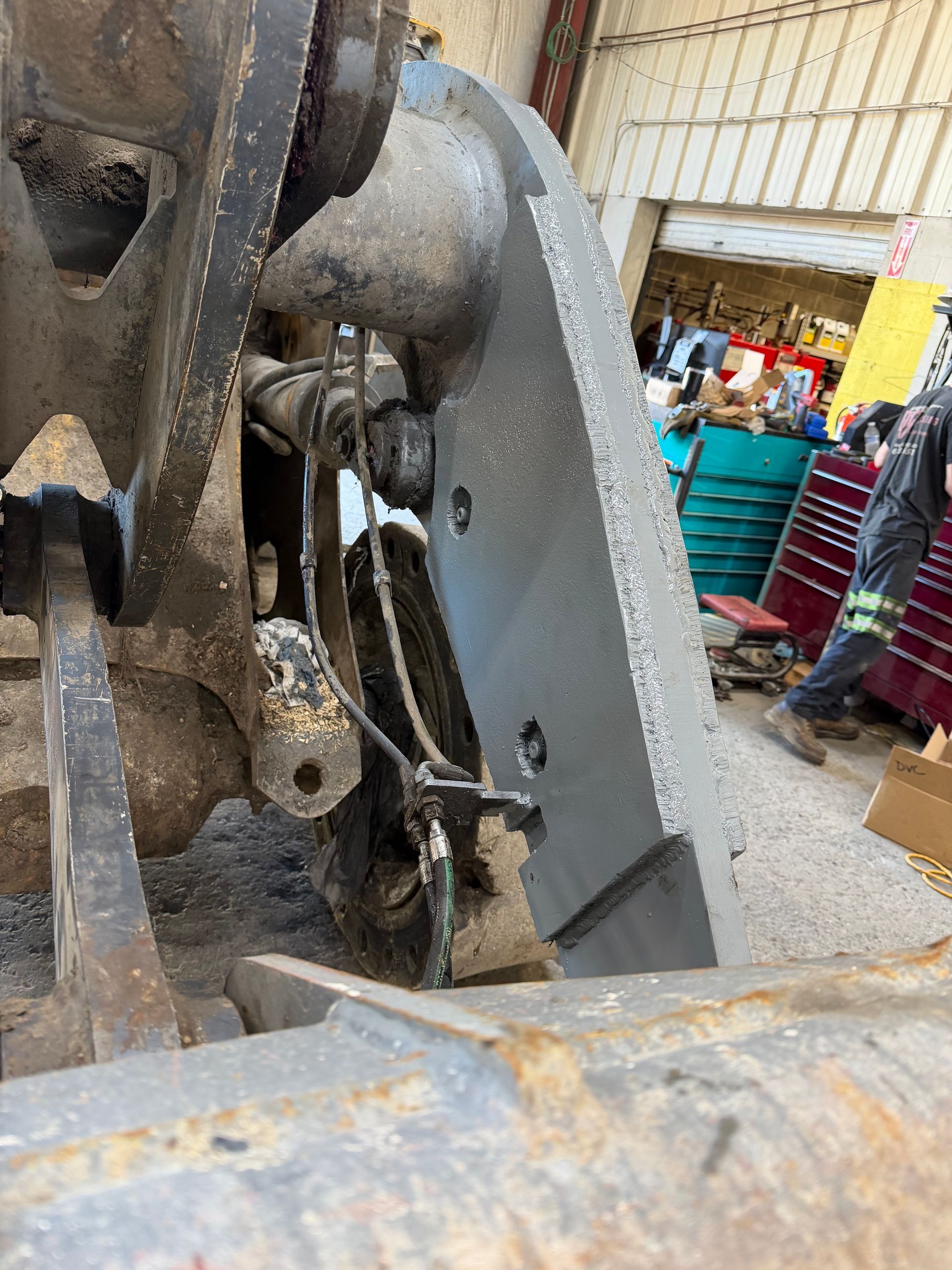

The results speak for themselves. The John Deere 544K wheel loader was fully reassembled and back on the job in less than three days. Instead of spending more than $20,000 on replacement components before labor, the customer’s total repair cost came to under $5,000 for parts and labor.
That represents a savings of more than $15,000 while also helping the customer avoid extended equipment downtime.
For businesses that rely on heavy equipment every day, that combination can make a significant difference. Getting a critical machine back into service quickly can help keep crews productive, projects moving, and schedules on track.
The Value of Experienced Heavy Equipment Repair
Equipment failures aren’t always straightforward, and the most cost-effective solution isn’t necessarily replacing an entire component or assembly.
At Delaware Valley Contractors, our experienced technicians offer practical repair solutions that can restore equipment while keeping costs and downtime under control. From structural repairs and custom fabrication to heavy equipment welding and component restoration, our team combines technical knowledge with hands-on experience to tackle challenging repairs.
This John Deere 544K repair is a great example of what’s possible when quality workmanship meets smart repair solutions.
